Find Mini Asphalt Plant, Asphalt Plant Components, Portable Asphalt Plant For Sale on Industry Directory, Reliable Manufacturer/Supplier/Factory from China.

Inquiry Basket (0)
Home > Products > Dust filter Bag > Portable Mini Asphalt Plant For Sale

Portable Mini Asphalt Plant For Sale

  • Portable Mini Asphalt Plant For Sale
  • Portable Mini Asphalt Plant For Sale
  • Portable Mini Asphalt Plant For Sale
  • Portable Mini Asphalt Plant For Sale

Portable Mini Asphalt Plant For Sale

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 35 Days
    Packaging:  1. Factory standard export package. 2. Package as customer demand.
    Productivity: 40sets/year
    Brand: Others
    Transportation: Ocean,Land
    Place of Origin: China
    Supply Ability: 30SETS/YEAR
    Certificate: ISO9001,CE,SGS etc.
    HS Code: 84743200
    Port: XiaMen,QingDao,ShangHai

Basic Info

Model No.: SLB

Product Description

Portable Mini Asphalt Plant For Sale

Product Description

1. Simple description and main structure

A.SLB series mobile asphalt plants are twin drum asphalt mixing plant. Drying drum and mixing drum are integrated design. Output: 8-30 TPH. SLB series mobile asphalt plants are twin drum asphalt mixing plant. Drying drum and mixing drum are integrated design. Output: 8-30 TPH.

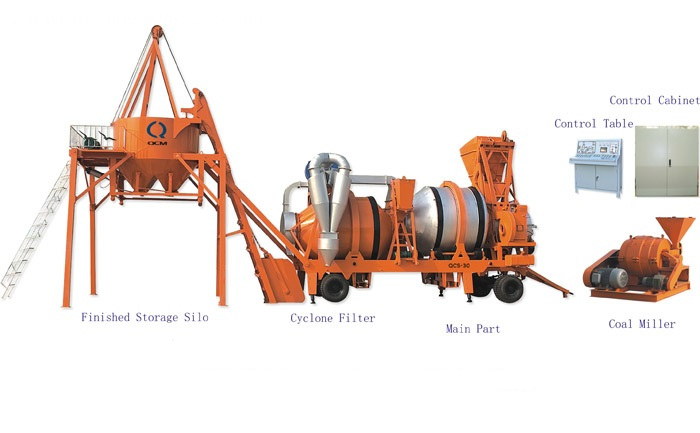

B. Main structure:

a. cold supply bins :3 or 4 sets ,it depends on your needs. b. Conveyor Belt, c. drying and mixing drum, d.elevato, e. dust filte, f. finished products silo :5t, g.control system, h.bitumen tank :30t.

C.Advantages

◆ Integrated design of drying and batching drum, reduce initiate cost for customer;
◆ Simple structure, easy operation, drying while drum rotate in counter-clockwise direction(from burner), discharging while drum rotates in clockwise direction (from burner), and the wind are swirled in the center of the drum;
◆ PLC control, touch screen, auto/manual switchable;
◆ Towing chassis for easy transport and installation;
◆ Burner is available for coal and oil, at customer's option.
Asphalt%20mixing%20plant%20QCS-20.

Technical Parameters Mobile Asphalt Plant

Mobile Mini Asphalt Mixing Plant For Sale

Model

SLB-8

SLB -10

SLB -15

SLB -20

SLB -30

Capacity

8t/h

10t/h

15t/h

20t/h

30t/h

Total Power

Fuel Oil

23.7 kW

24.3 kW

33 kW

46.5 kW

60 kW

Fuel Coal

40 kW

41 kW

54 kW

70 kW

90.3 kW

Asphalt Temperature

120-180°C (adjustable)

Fuel Consumption

Fuel Oil: 5-7.5 kg/t; Fuel Coal: 13-15 kg/t

Optional Components

Water Dust Collector, Baghouse dust collector, Control room, Bitumen heating tank

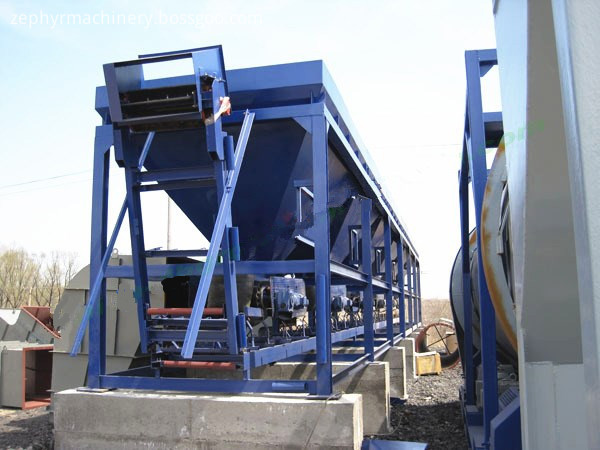

3.Cold aggregate supply system
Components: 4 aggregate belt feeders, 1 set of aggregate belt conveyer;
Specifications:

Bin cubage 4×4m³,

The bin width 2.6m, Loading height: 2.7m, Motor power 4×1.5kw(electromagnetic timing)

Bin vibrator: 0.25kw,
Aggregate belt width 500mm; motor power 4kw,

Advantage
Inside bin equipped with filtering net, the feeder motor adopts electromagnetic timing convenient for transportation.

feeder asphalt plant

4. The Burning System.
Burner is available for both coal and oil. Customers can choose either freely. (If you choose the coal burner, a coal breaker is needed)

burner asphalt plant

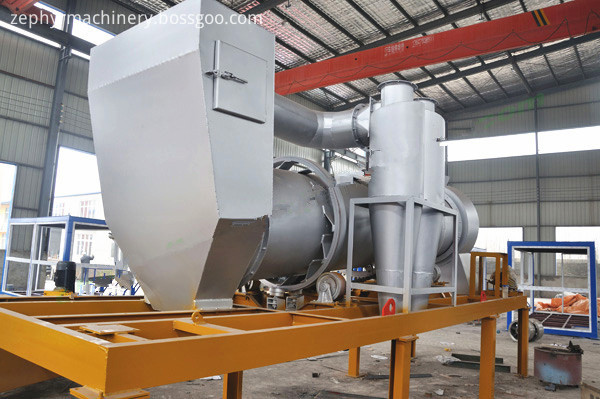

5. Dust Collecting System

The Cyclone Dust Filter is the basic configuration, and the bag filter and water filter is for optional. The dust collecting system can help you to reduce the pollution.

dust asphalt plant

6. Drying drum
The drying drum and the mixing drum are integrated design which reduces customers` cost.
Advantages
The drying drum is driven by gear-tooth joggle with reliable capability; elevator board chain material 40Cr, hanging hopper material is 65Mn.

7. Electric control system

A.The figure dimension 2.2x2.2x2.5m; Copy container structure, the walls, door and windows are made of colorized steel plate. Pleasing shape, good seal; easy to hoist and transport.
B.Box type control cabinet, main electric parts are Zhengtai, Schneider, which has interlock and two-grade protection;

C.The operation panel equipped with manual operation device, digital indicator for main motor, mixture temperature, cold aggregate, fuel and asphalt.

Control asphalt plant

Auto production line


Auto%20production%20Line
